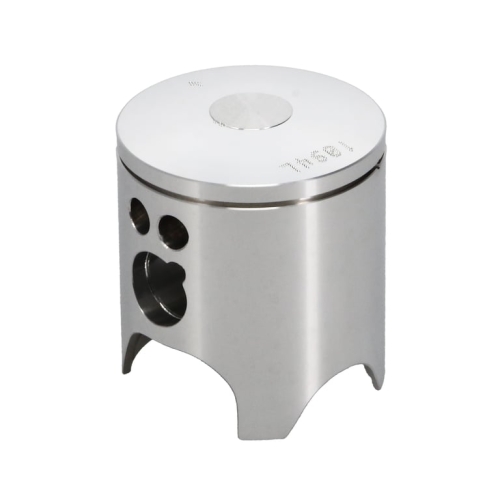

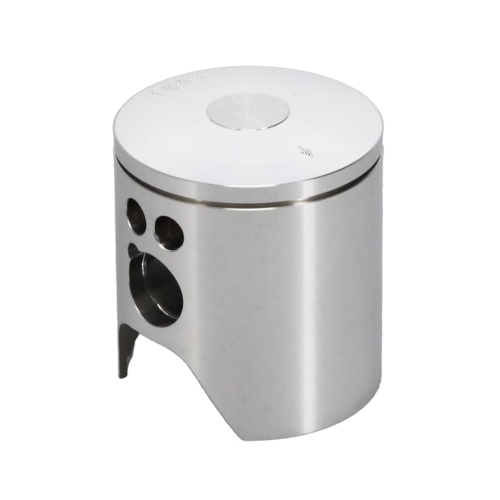

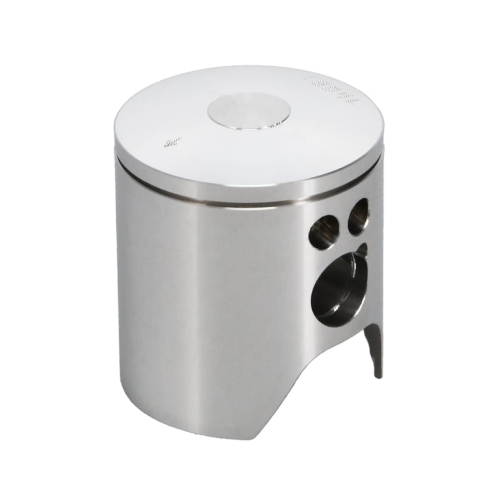

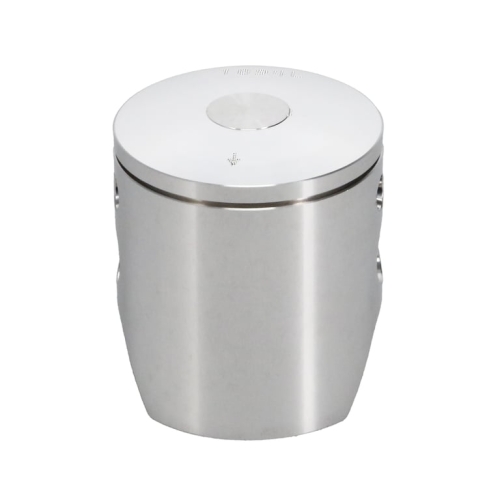

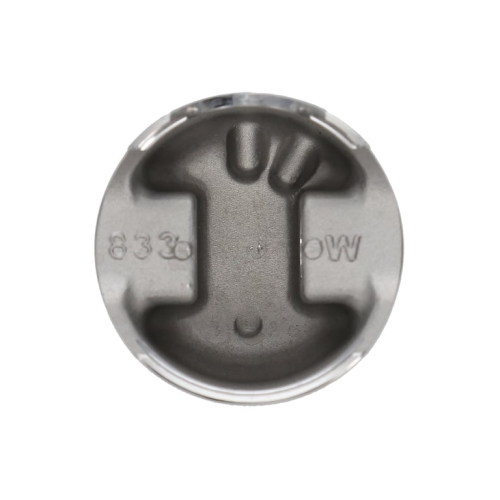

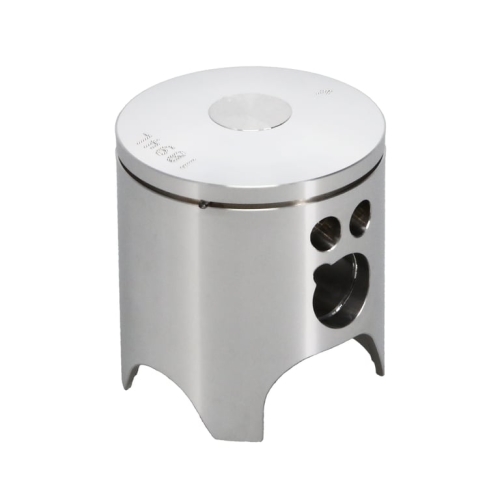

Wiseco Piston Kit Honda CR85 '03-07 (47.44mm)

Wiseco Piston Kit Honda CR85 '03-07 (47.44mm) - Image 2

Wiseco Piston Kit Honda CR85 '03-07 (47.44mm) - Image 3

Wiseco Piston Kit Honda CR85 '03-07 (47.44mm) - Image 4

Wiseco Piston Kit Honda CR85 '03-07 (47.44mm) - Image 5

Wiseco Piston Kit Honda CR85 '03-07 (47.44mm) - Image 6

Wiseco Piston Kit Honda CR85 ’03-07 (47.44mm)

86,72 €

7 em stock

REF: W833M04750A Categoria: Accessories

Informação adicional
Avaliações (0)

Informação adicional

Brands	Wiseco
Grupo	Pistons
Marca Veículo	Honda
Modelo Veículo	CR 85 R
Ano	2003, 2004, 2005, 2006, 2007
Bore - Standard	47.50 mm
Piston Size	47.44 mm
Total Height	53.50 mm
Piston Pin Hole Diameter	14.00 mm
Compression Height	17.00 mm
Ring Locating Pin (E)	11.00
Ring Locating Pin (F)	–
Boss Space In	16.60 mm
Piston Head Type	Dome
Skirt Coating	–
Additional Info	Reed-Cut-Out, Forged Piston
OEM Reference No	13120-GBF-B00
Country of Origin	USA
Piston Ring Part #	W1869CS
Piston Pin Part #	WS517
Circlip Part #	WCW14
Package Height	82,55 mm
Package Length	76,20 mm
Package Weight	226.80 g
Package Width	76,20 mm
Image Info	These images are actual
